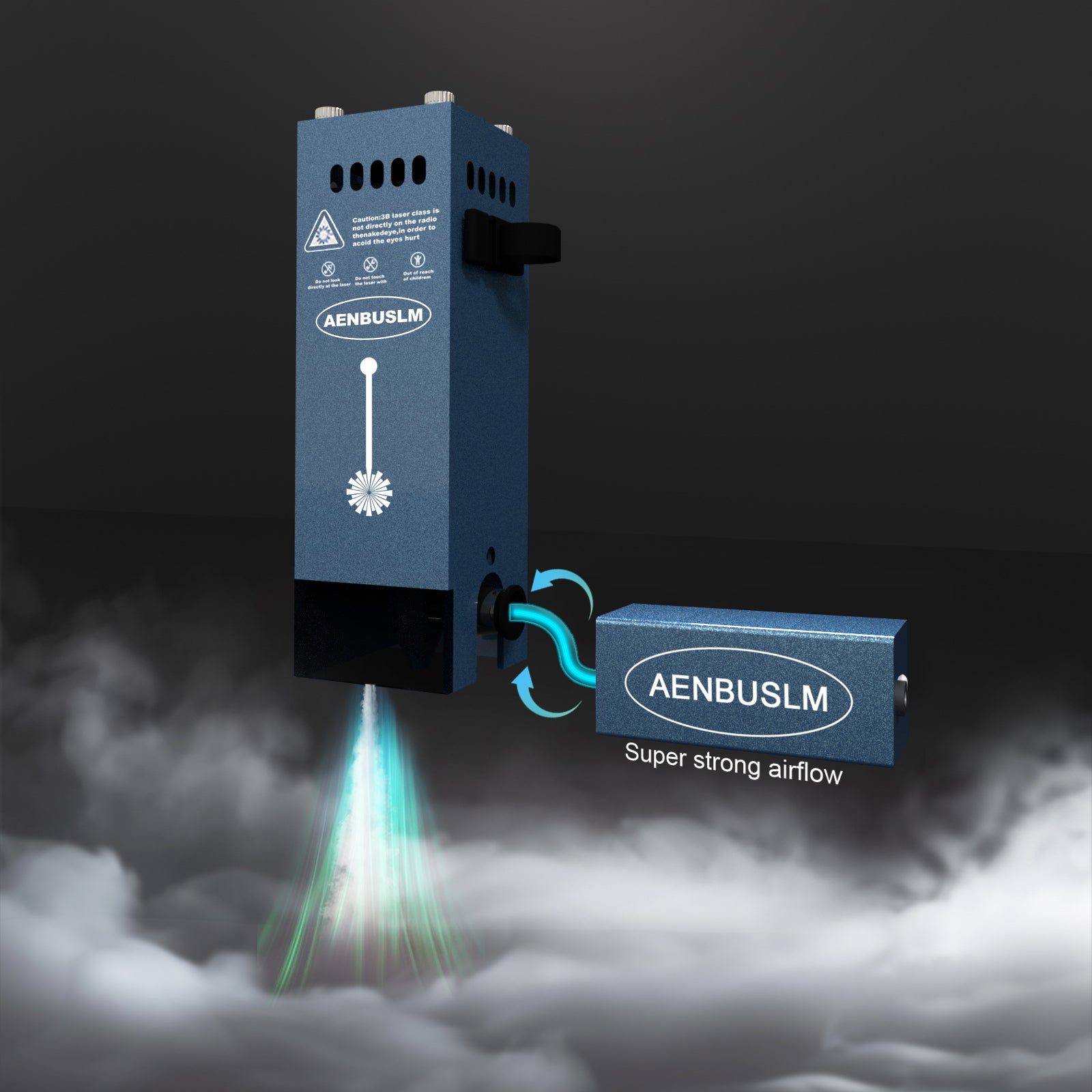

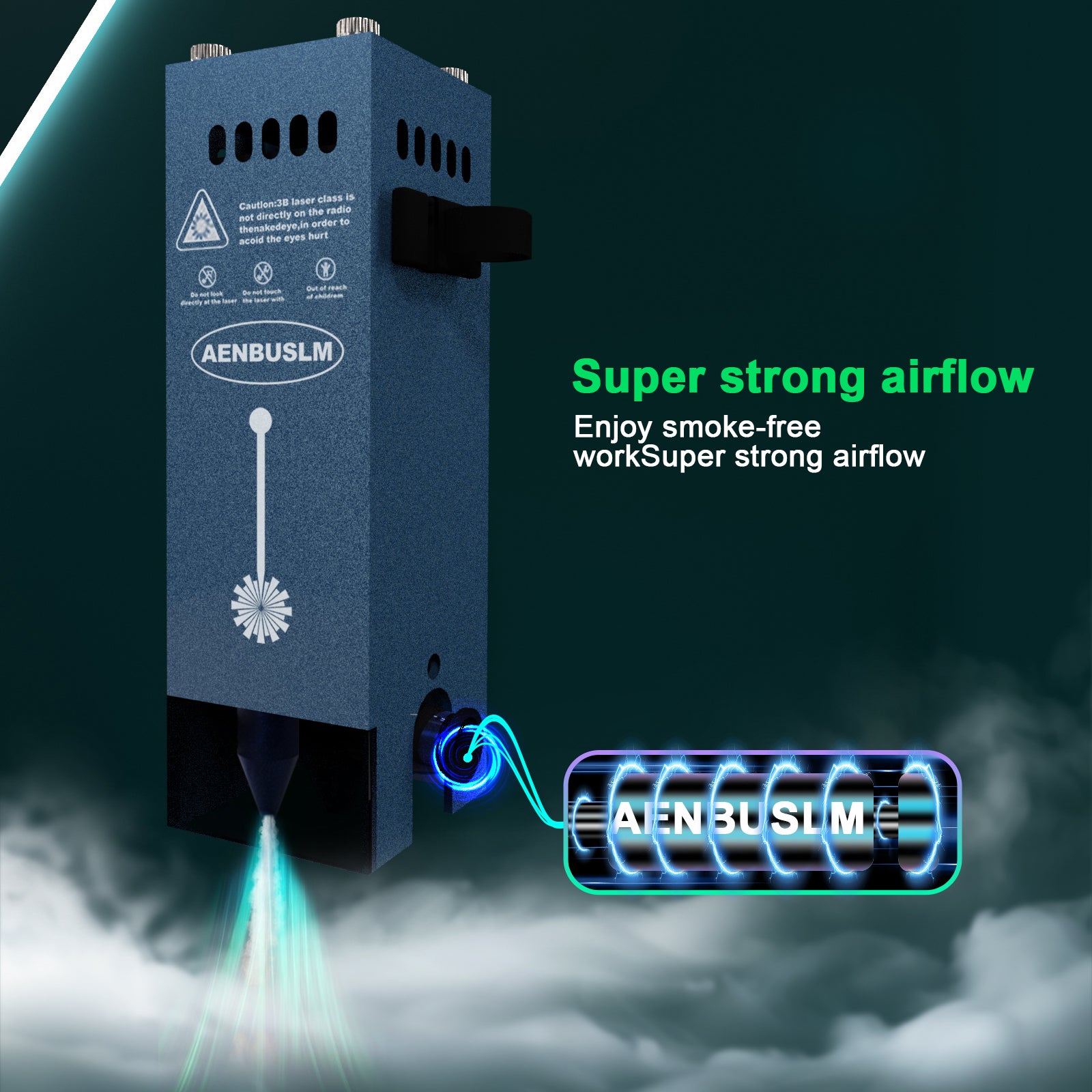

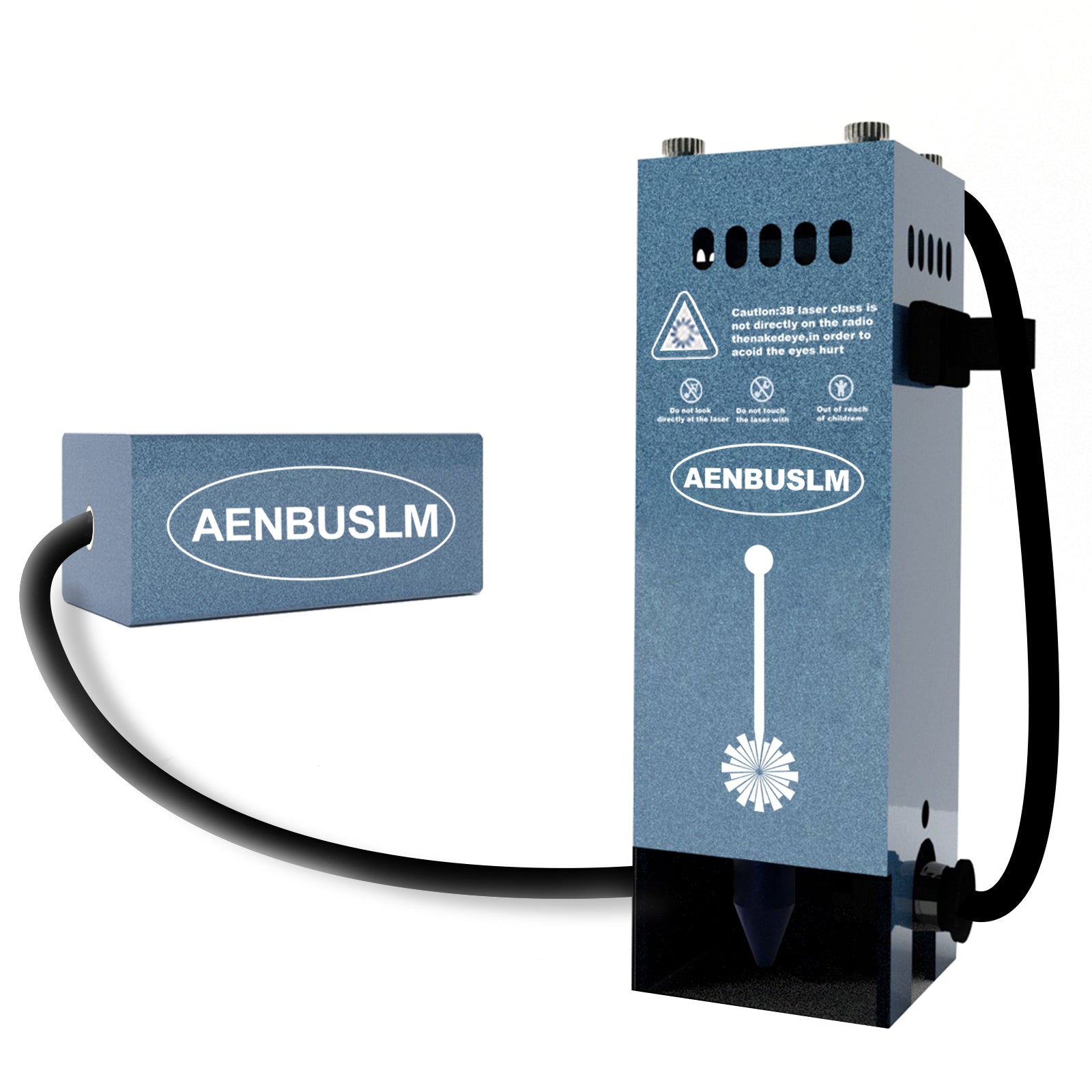

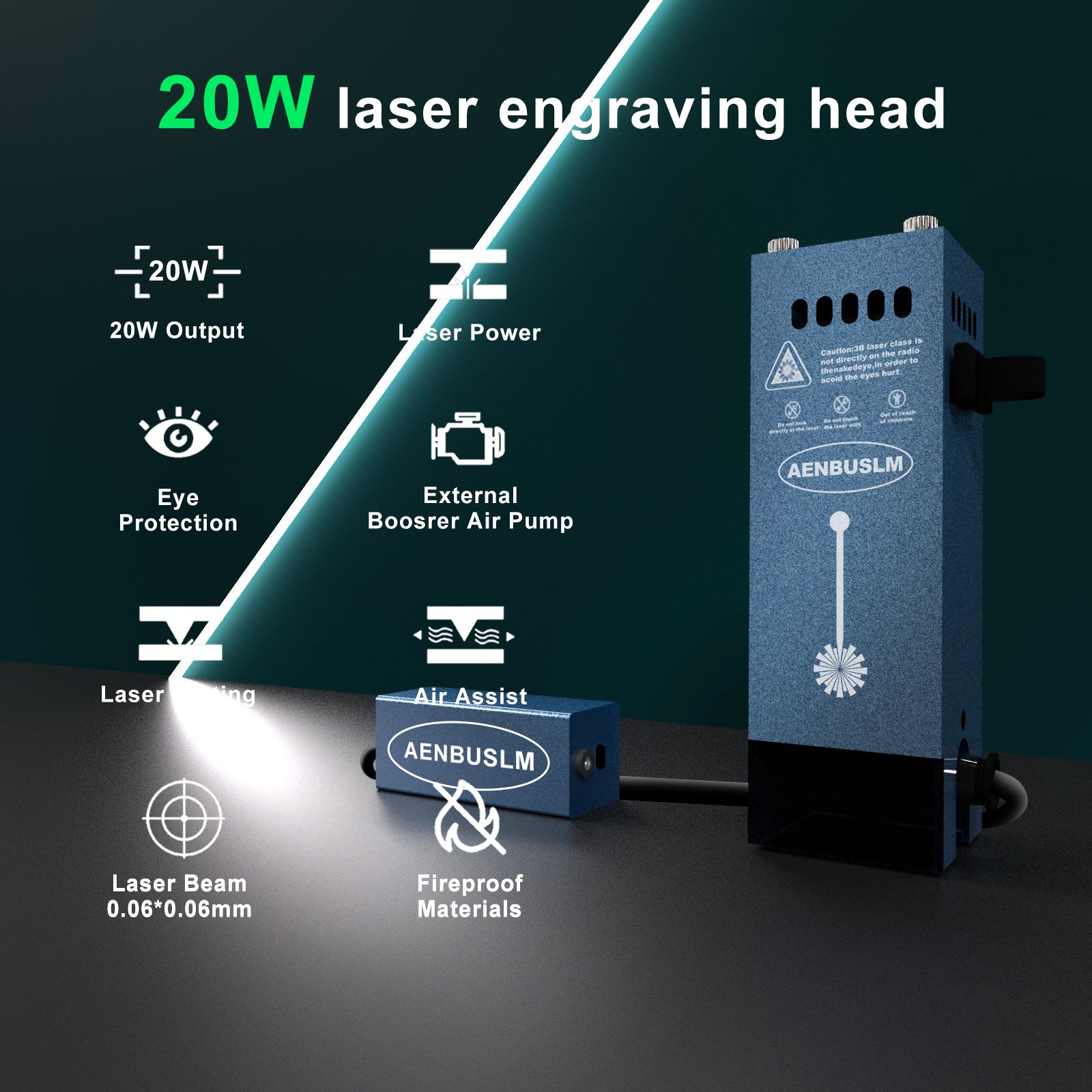

AENBUSLM Laser Module with Air Assit for Laser Cutter & Laser Engraver Machine,20W Output Power,Built in FAC,Ultra-Fine Compressed Spot CNC Carving DIY Laser Master - Class 4

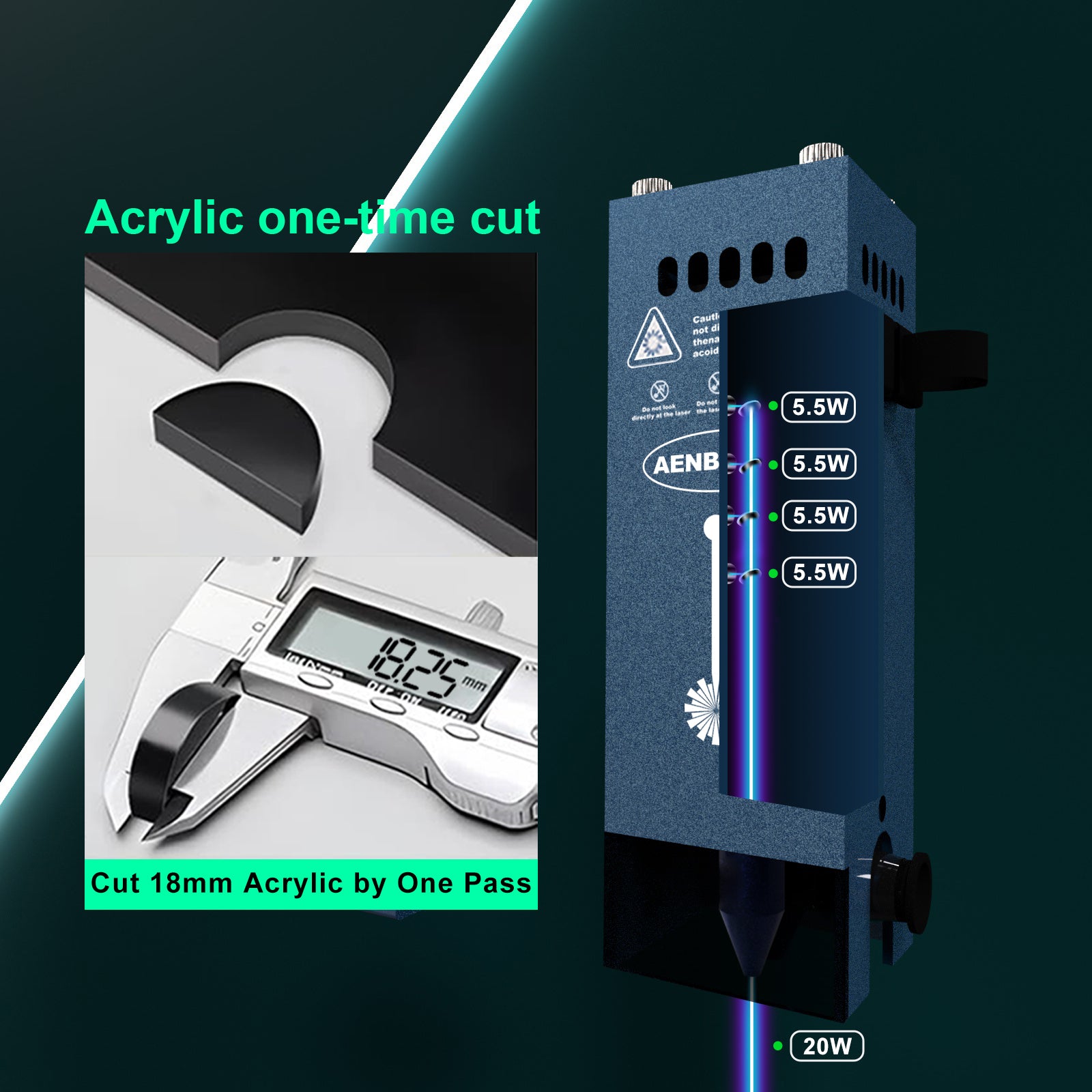

The newly upgraded 20W laser module is powerful, the engraving speed is 6-7 times faster than the traditional laser module, and the engraving effect on stainless steel is better.
The laser engraving is 3 to 4 times more accurate than the traditional laser module, and the conversion speed is faster and more accurate.
The precise power and laser power are calculated according to international standards, and the actual power is normal. Real power. (The product parameters and product information we describe are strictly tested)

20W technical parameters
Light source: blue diode laser blue shell
Material: aviation aluminum
Color: black oxygen electrode
Module core material: shielded copper

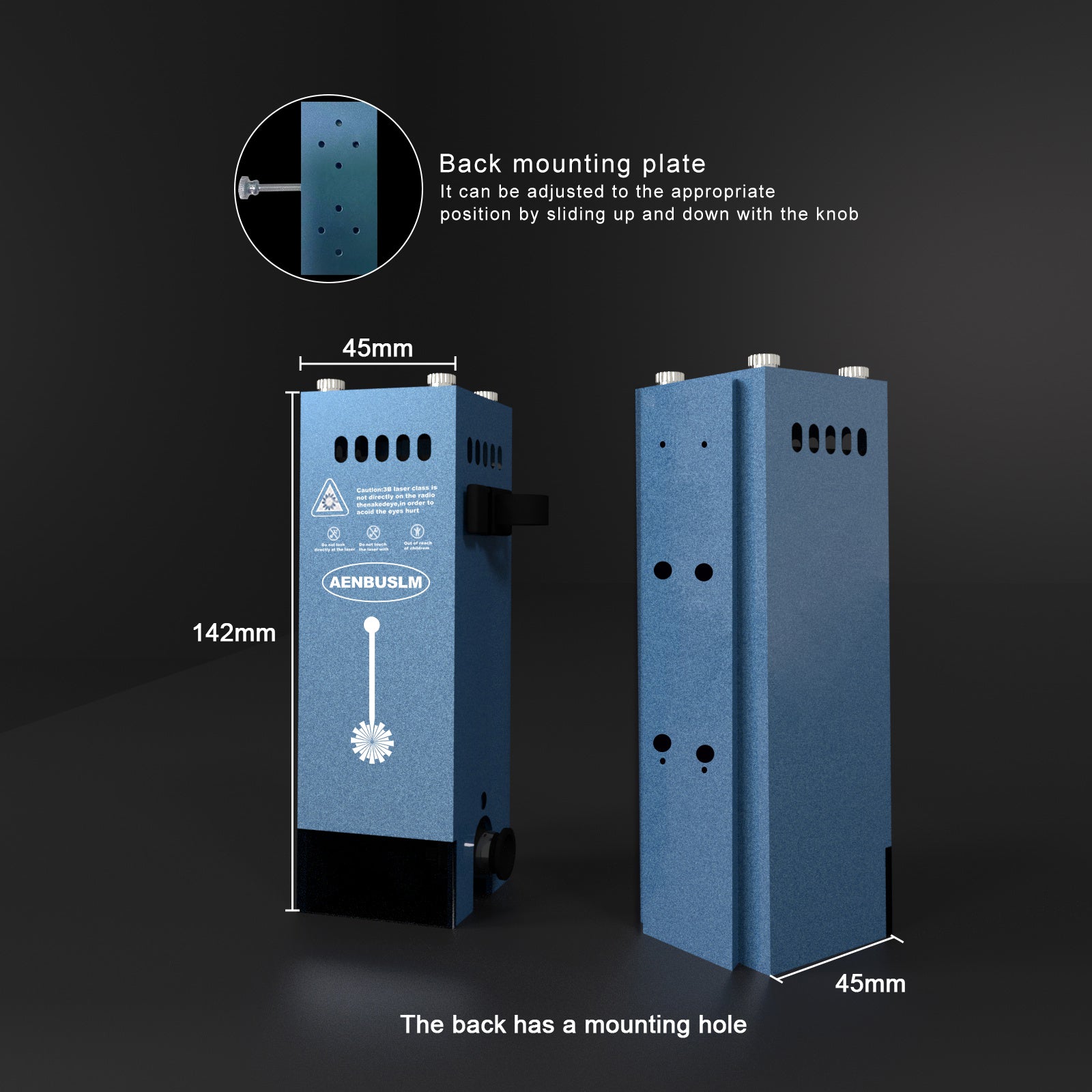

Size; 44.8-44.8-141mm

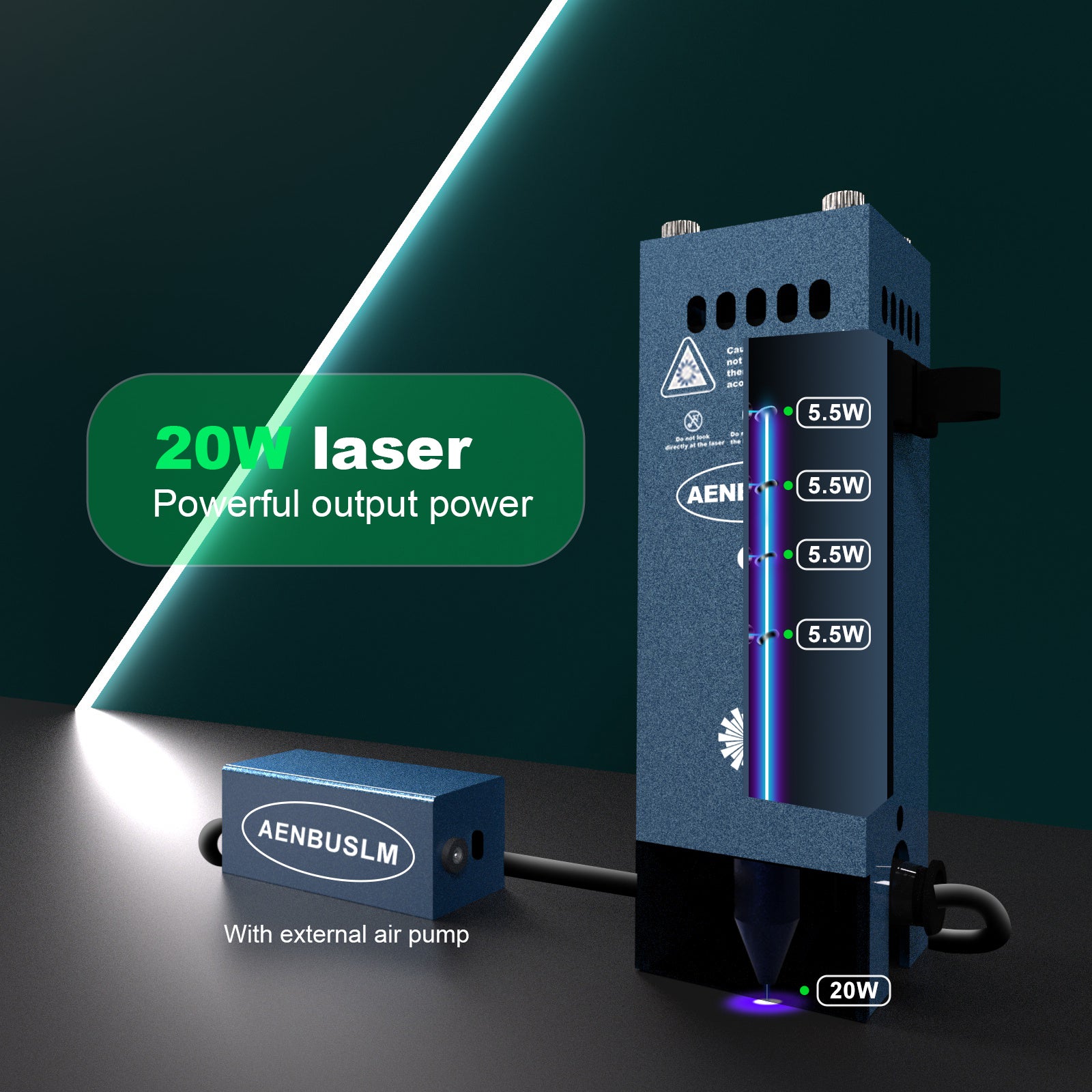

Light output power: 20W
Laser wavelength: 450nm
Power supply voltage: 12V/24V universal
Power control: PWM/TTL (0-5V signal control voltage)
Power supply current:
4A Interface specification: 3-pin 2.54/4-pin 2.54
Light source type: fixed focus (10mm depends on the fixed focus rod)

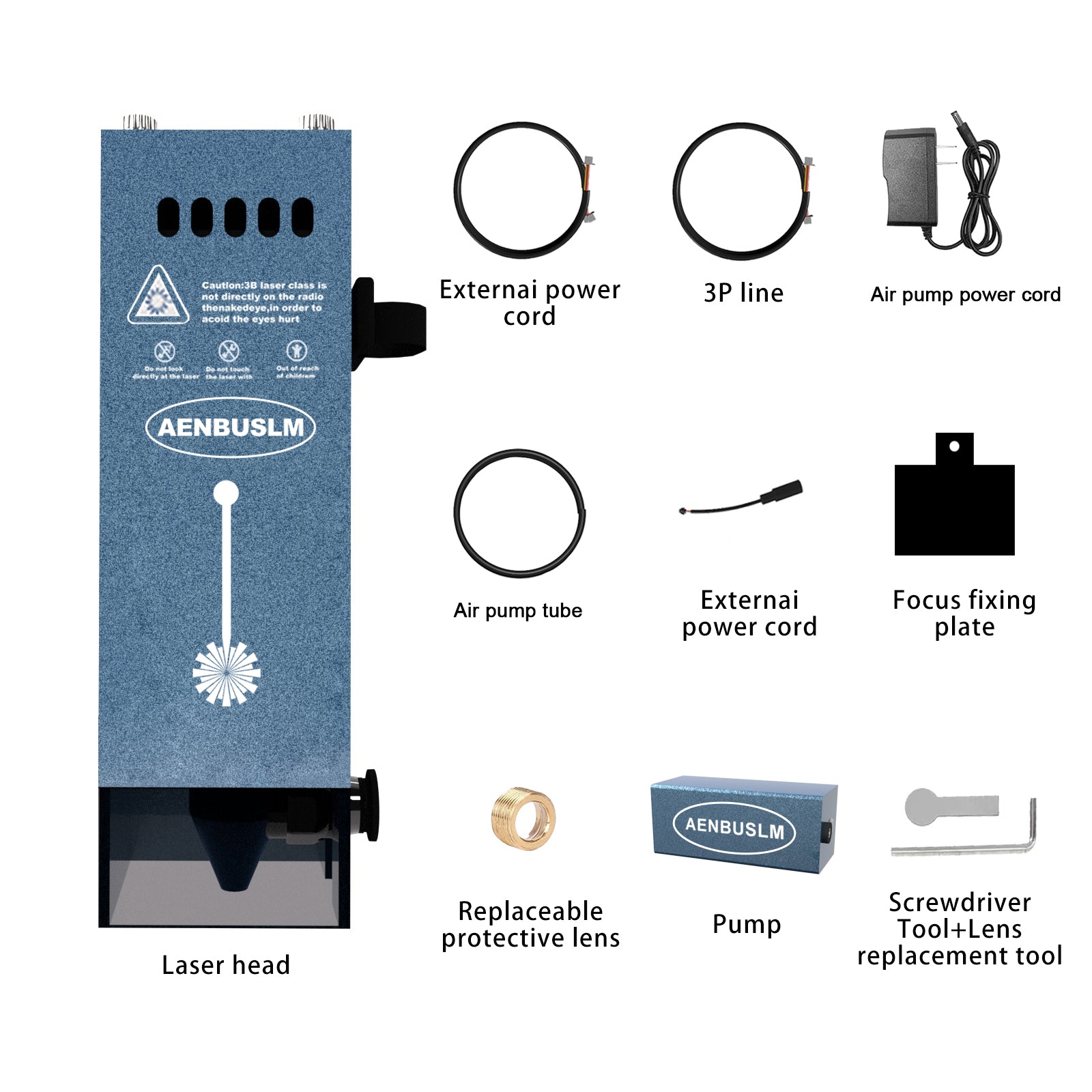

The list includes: 4P line * 1, 3P line * 1, DC short line * 1, column focal length * 1, laser module * 1.
Service life 20,000 hours. (If the humidity is high, a fan can be installed when recording or cutting)
The body is upgraded with a laser protection heat sink to make the machine longer, more durable and better.

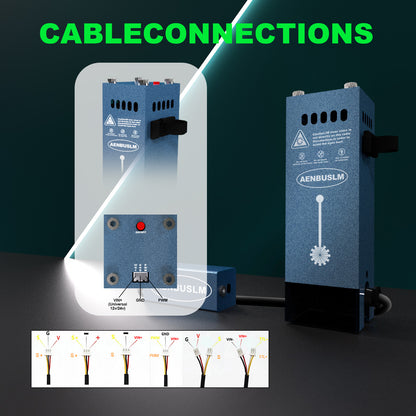

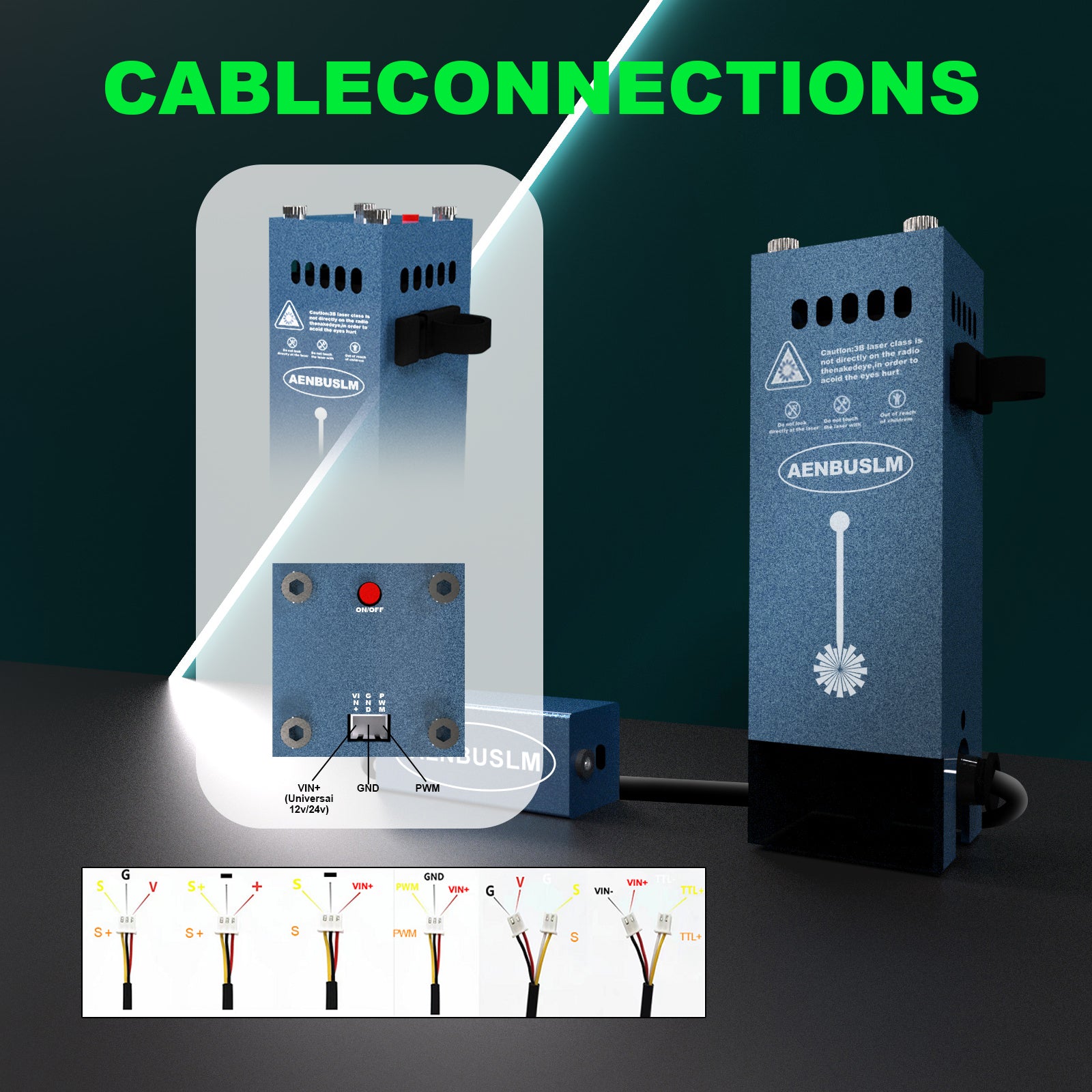

Buyers must read: Pay attention to the line sequence: 3P line connection, 12V/24V line + red line, GND-black line, PWM+yellow line, check carefully if it needs to be replaced
Buyers must read: Pay attention to the line sequence: 4P line connection, 12V/24V+red line, 12V/24V-black line, TTL+yellow line, TTL white line-check carefully
